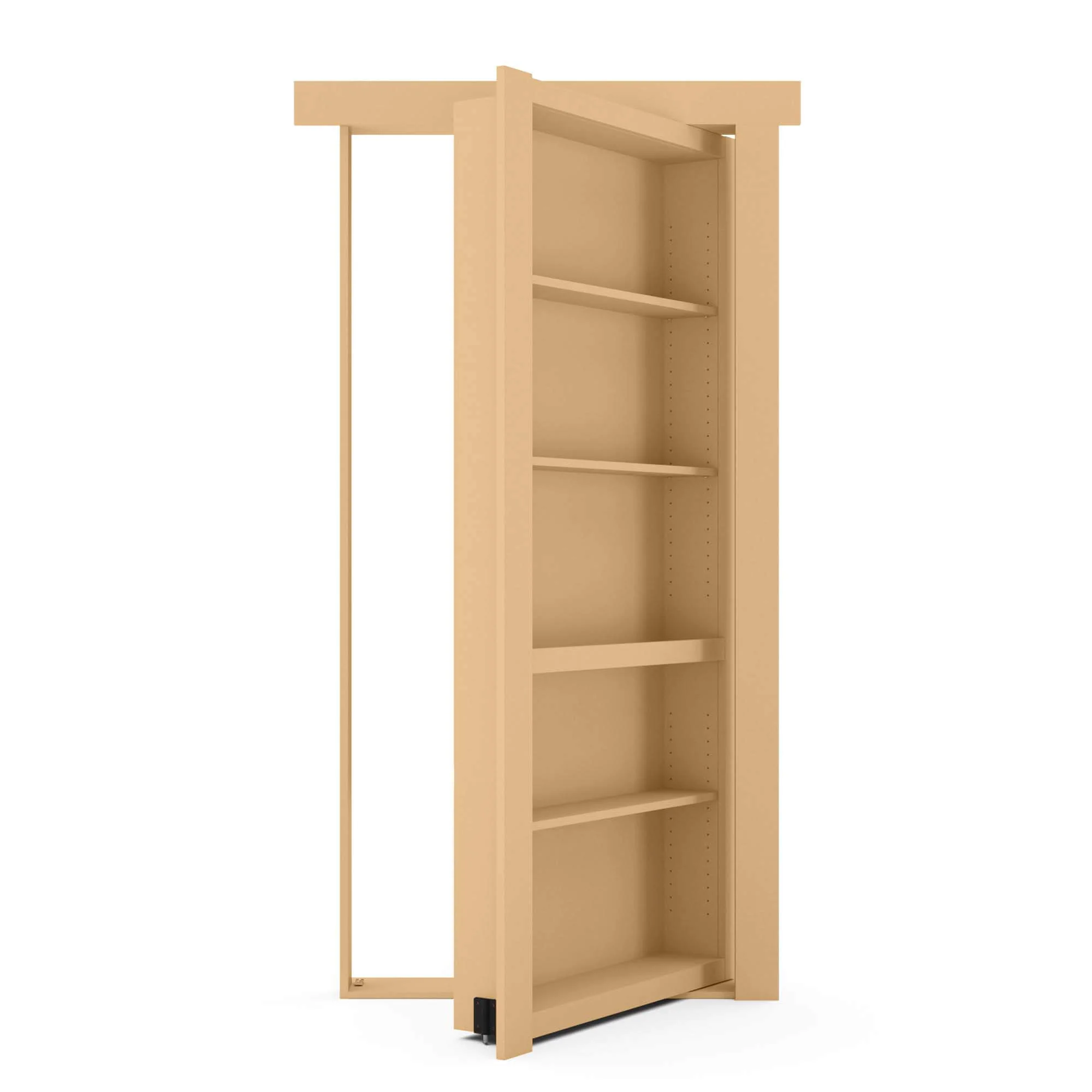

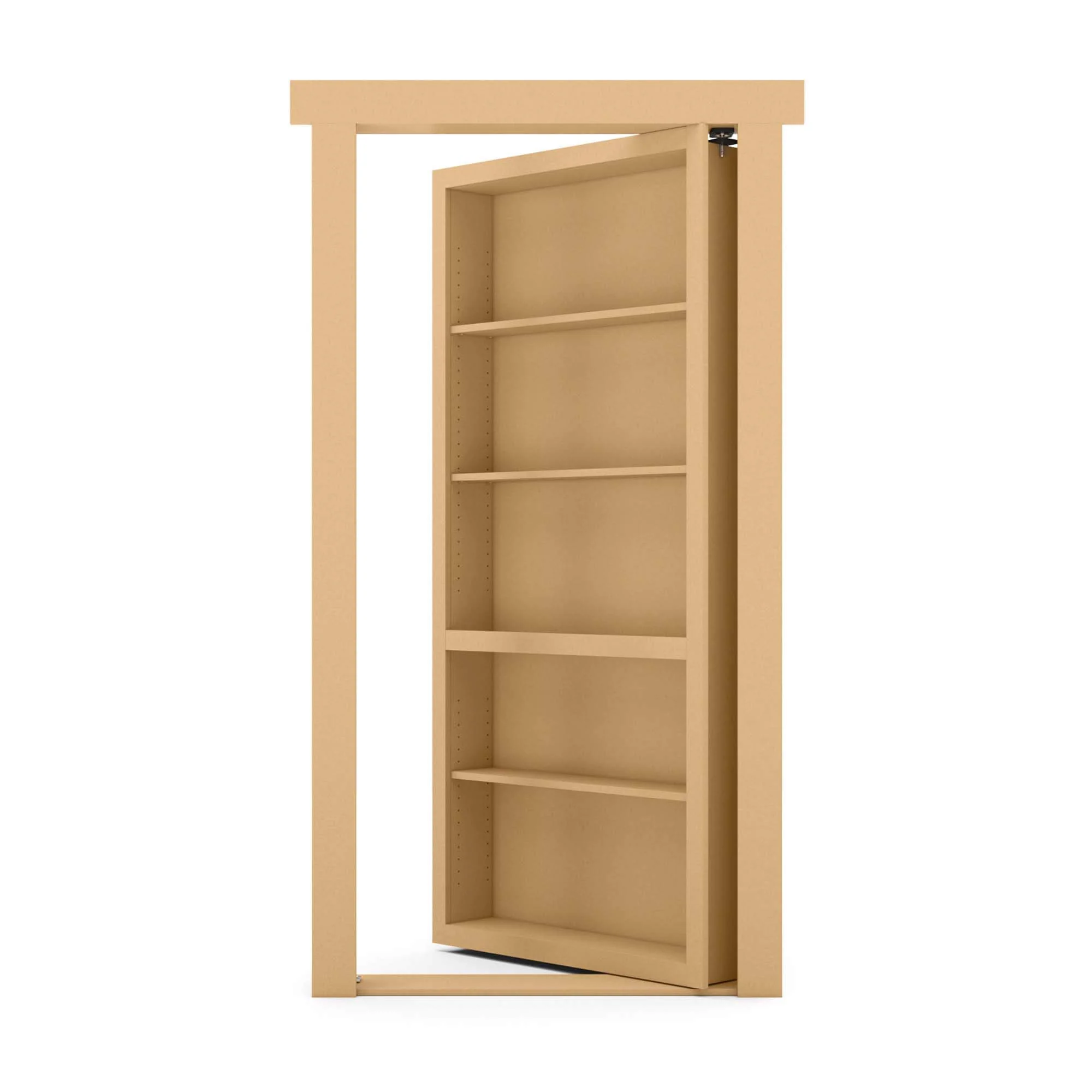

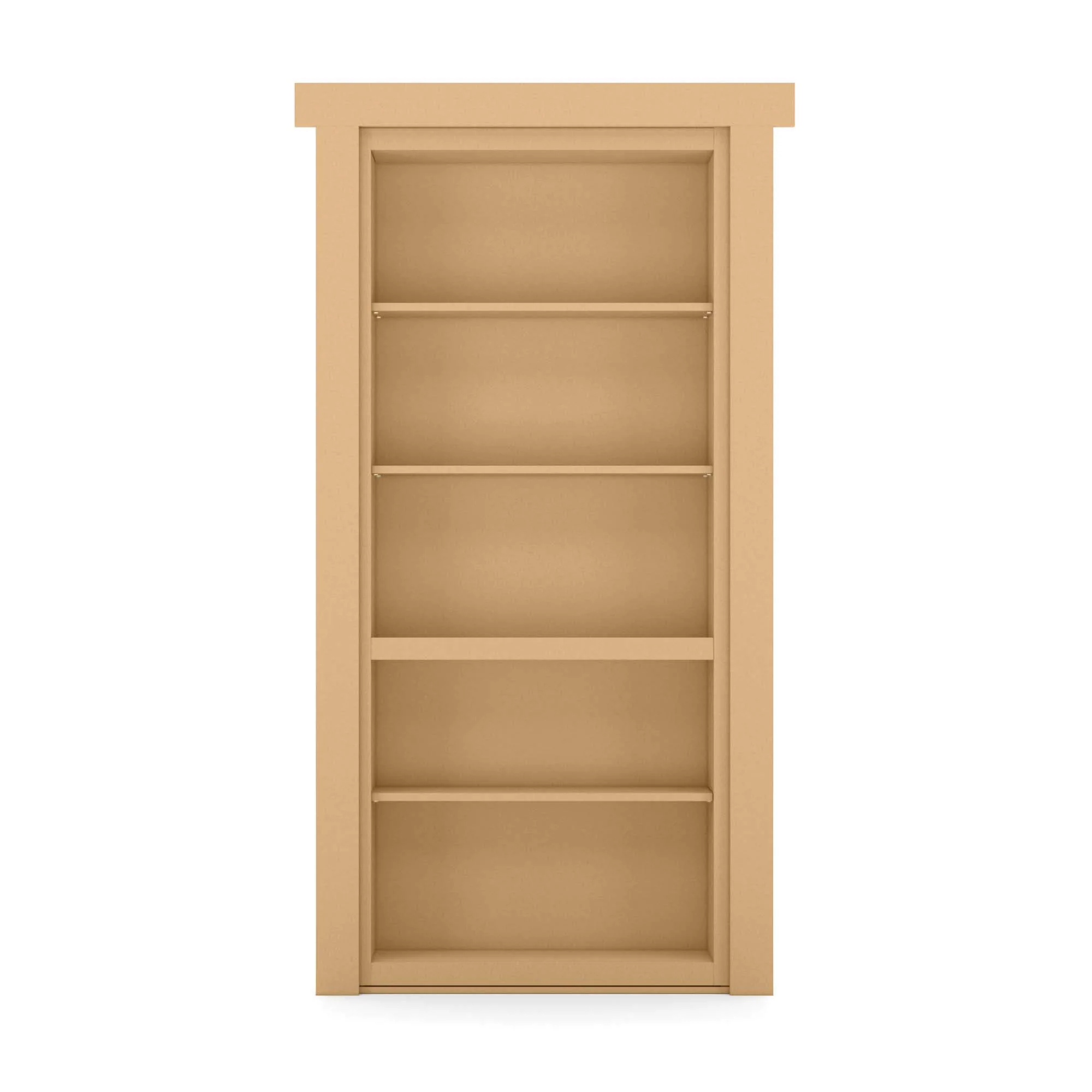

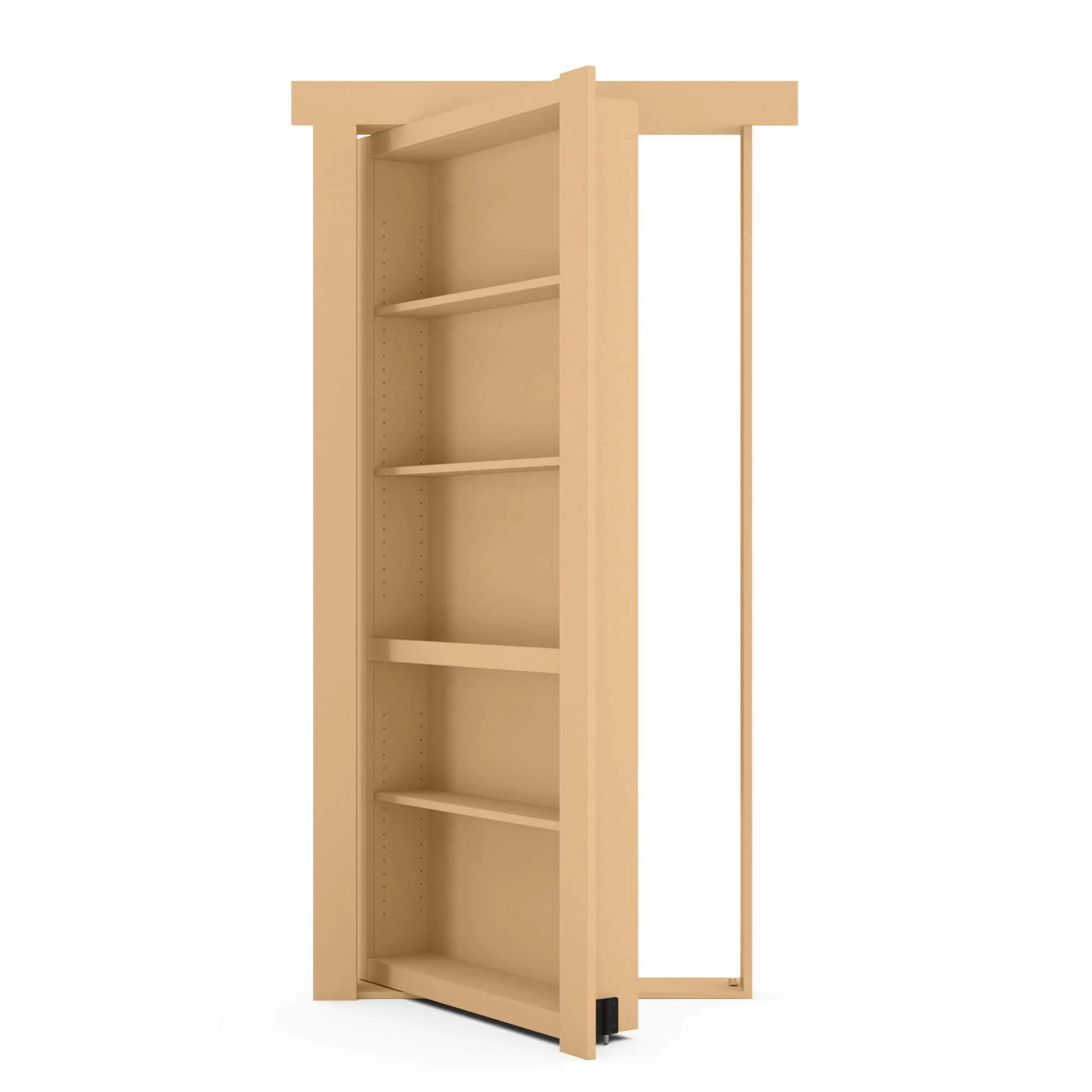

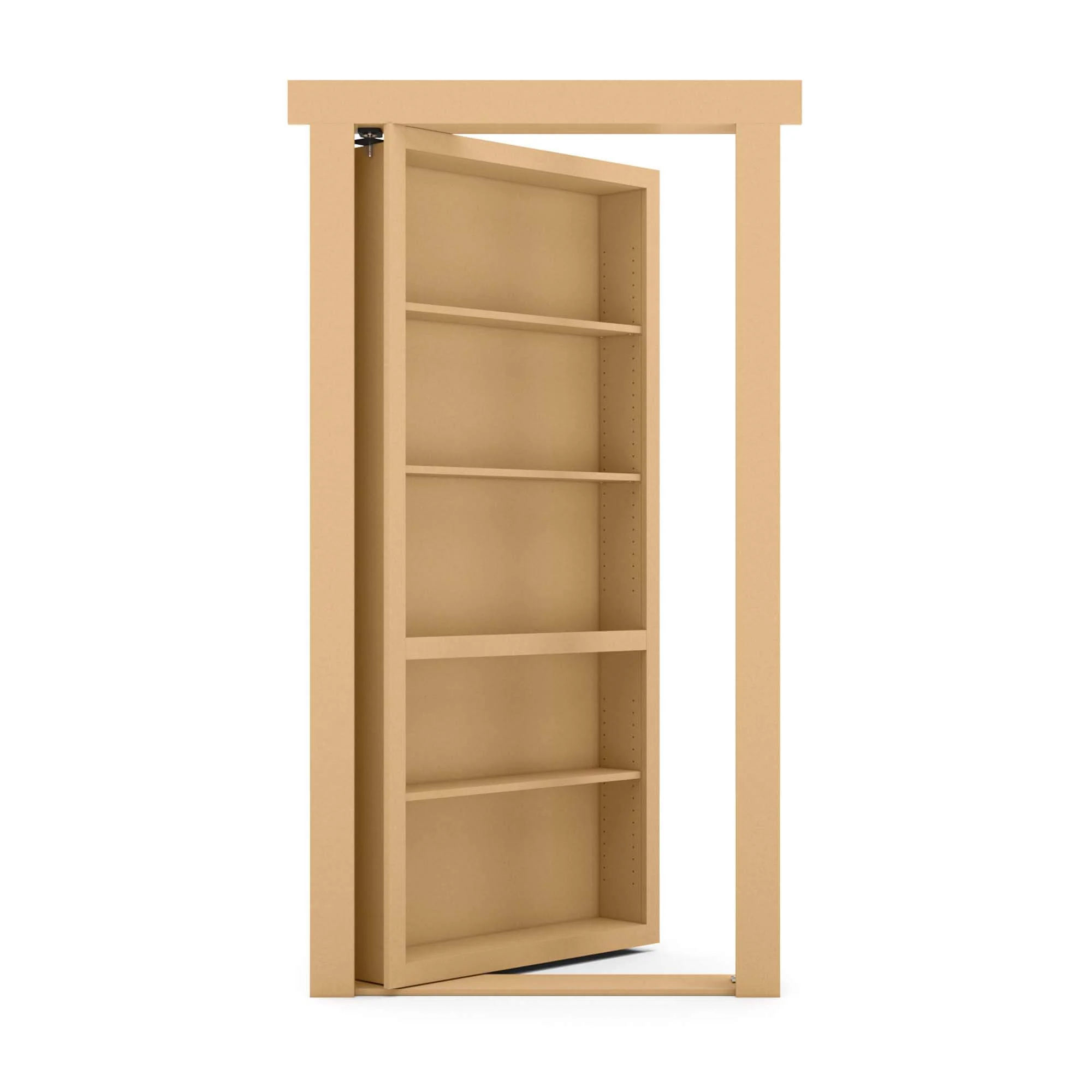

Build Your Own Hidden Door!

If you have been dreaming of a Murphy Door but don't have measurements to cut for clearances, or access to carpentry equipment; our unassembled bookcase door kit is a great option.

• Constructed with Paint Grade MDF
• Arrives ready to assemble.
• Includes hardware, lumber, fasteners, and installation instructions. 3D interactive installation instructions are also available on the free BILT app. Visit the Apple app store or google play store to download then search Murphy Door.

Do not schedule contractors or installers until after receipt and inspection of the door. Murphy Door will not be liable for contractor's costs for delays due to production and shipping times, damages, defects, or missing items.

* Limited warranty on Unassembled Bookcase Door Kit - materials & hardware only.

NOTE:
If you have limited carpentry experience we recommend ordering a pre-assembled bookcase door.

All of our flush mount hidden doors will lose pass through space and protrude into the room behind.

IN-SWING DOORS

In-swing doors lose less pass through space, but require wall clearance to fully open.

Door Depth	Pass Through	Wall Clearance	Protrusion*
6-1/2" 8-1/4" 10" 12"	- 6" - 6" - 6" - 6"	NA 1-1/2" 3-1/2" 5-1/2"	2" 3-3/4" 5-1/2" 7-1/2"

*Door protrusion is based on a 4-9/16" door jamb.

OUT-SWING DOORS

Out-swing doors lose more pass through space, but will not require wall clearance to fully open.

Door Depth	Pass Through	Protrusion*
5-1/4" 8-1/4" 10" 12"	- 8-1/4" - 11-1/4" - 13" - 15"	3/4" 3-3/4" 5-1/2" 7-1/2"

*Door protrusion is based on a 4-9/16" door jamb.
